Enterprise Integration Architecture: Embedded Delivery and Checklists

Technician connecting enterprise network infrastructure

Integration architecture is the strategic design of how applications, data, and services connect so an enterprise gets reliable, observable, and evolvable business flows out of otherwise disconnected systems. The discipline sits on two dominant approaches today, API-led connectivity and event-driven messaging, and most enterprise estates end up running both at once. The payoff is real: fewer brittle point-to-point integrations, faster onboarding of new systems, and a much clearer picture of what breaks and why when something inevitably does.

TL;DR:

  • Most enterprise estates benefit from a hybrid approach, combining API-led connectivity for immediate responses and event-driven messaging for scalable, loose coupling.
  • Synchronous integrations risk cascading failures, so most large-scale systems rely on asynchronous messaging to improve resilience and reduce outage scope.
  • Clear governance, an artifact registry, and explicit versioning are critical to prevent schema drift, undocumented interfaces, and maintenance headaches over time.
  • Planning and testing should begin early with comprehensive interface inventories, sequencing, environment setup, and staged rollback strategies to avoid costly retrofits.
  • Staying involved during deployment ensures schema consistency, interface clarity, and rollback readiness, reducing the risk of integration failures in production.
Quicktoimpress
Build Integration Systems That Hold
Quick To Impress embeds with your team to build connected systems, integrations, internal tools, and automation for sustainable growth.
Explore Quick To Impress

Table of Contents

What Is Integration Architecture in an Enterprise?

Integration architecture defines how every application, data store, service, and device in an organization exchanges information, whether that exchange happens on-premises, in the cloud, or at the edge. It is broader than a single project’s connector map. It is the standing set of rules, components, and governance that any team building a new integration has to follow.

Scope matters here because it determines who gets a say. A payment gateway integration touches security, finance, and compliance. A marketing automation sync touches sales operations and data governance. Integration architecture has to account for all of it, not just the technical wiring.

Several roles typically share ownership:

  • Enterprise architects set the overall integration strategy and approve which patterns are sanctioned.
  • Integration architects design specific solutions, choose protocols, and own the artifact registry.
  • Platform engineers build and operate the middleware, gateways, and pipelines.
  • Data stewards enforce data quality and ownership rules across integrated systems.
  • Security teams define authentication and authorization requirements for every interface.

It helps to separate three terms people use interchangeably. Integration architecture is the design and set of standards. System integration is the act of connecting specific systems, often a one time project governed by that architecture. Solution architecture is narrower still: the technical design for one application or product, which must comply with the broader integration architecture rather than invent its own rules.

What Are the Core Components and Patterns of Integration Architecture?

Every enterprise integration estate is built from a small set of recurring components, assembled differently depending on the pattern in play.

The building blocks:

  1. API gateway and management layer — handles routing, throttling, and versioning for synchronous calls between services.
  2. Message broker — queues work between systems so a slow or offline consumer does not stall the producer.
  3. Event bus — publishes state changes so any number of subscribers can react without the publisher knowing who is listening.
  4. Orchestration and workflow engines — sequence multi-step business processes across several systems.
  5. Connectors and adapters — translate between a legacy system’s native protocol and the rest of the integration fabric.
  6. Data pipelines — move and transform bulk data for analytics, reporting, or migration rather than real-time transactions.

On top of those components sit the patterns architects actually choose between: API-led connectivity (layering experience, process, and system APIs), the classic enterprise service bus, publish/subscribe event-driven designs, service mesh for service-to-service traffic inside a cluster, and event sourcing for systems that need a full audit trail of state changes rather than just the current state.

The trade-off that matters most is synchronous versus asynchronous. Synchronous, request/response calls are easier to reason about and debug, but they couple the caller to the callee’s uptime and latency. Asynchronous messaging is the foundation for most large-scale integration because it supports loose coupling and tolerates latency and partial failure without cascading outages, according to Enterprise Integration Patterns. The practical default at enterprise scale is a hybrid: synchronous APIs for user-facing, low-latency interactions, and asynchronous messaging for anything that crosses system boundaries in the back office.

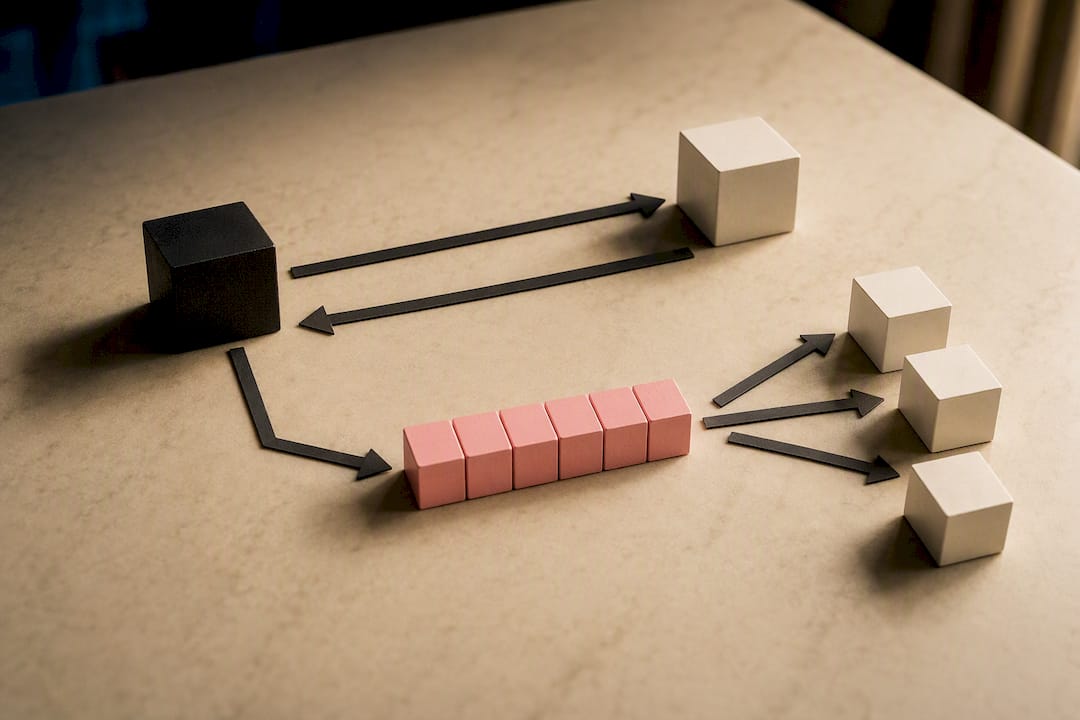

Synchronous and asynchronous integration paths

Pro Tip: Before choosing a pattern, ask whether the consumer needs an immediate answer. If the answer is no, default to asynchronous. Most integration outages trace back to a synchronous call that should have been a queue.

What Design Principles and Governance Keep Integration Sustainable?

Integration architecture degrades fast without principled design choices baked in from the start. The core ones every architect should enforce:

  • Separation of concerns — keep transformation, routing, and business logic in distinct layers so a change in one does not ripple into the others.
  • Loose coupling — services should depend on contracts, not on each other’s implementation details.
  • Contract-first design — define the API or event schema before writing integration code, not after.
  • Idempotency — any operation that might be retried (and in distributed systems, it will be) must produce the same result no matter how many times it runs.
  • Explicit versioning — never let a breaking schema change ship without a version bump and a migration path for existing consumers.
  • Observability by default — every integration flow should emit metrics and traces without being asked.

Governance is what keeps those principles from decaying under delivery pressure. Centralizing shared artifacts, schemas, WSDLs, OpenAPI specs, and cross-reference tables, in one registry prevents the same interface from being redefined three different ways across three teams, and it directly reduces configuration drift. Naming conventions and lifecycle rules for deprecating old interfaces matter more than they get credit for; an undocumented naming scheme is how a “temporary” integration outlives three reorgs.

Pro Tip: Assign an owner to every artifact in the registry, not just a team. When no single person is accountable for a schema, nobody notices when it drifts out of sync with the systems using it.

On the operational side, integration flows need their own service level objectives, separate from the applications they connect. Message queue depth, API error rates by endpoint, and end-to-end transaction latency are the three metrics that catch problems before customers do.

What Do Reference Architectures for Integration Look Like?

A baseline API-first architecture works well when most traffic is request/response and the number of integrated systems is manageable, typically under a few dozen. It centers on an API gateway, a handful of well-documented system and process APIs, and straightforward point-to-point contracts. It fits organizations still consolidating their integration estate.

An event-driven architecture makes more sense once you have many independent consumers reacting to the same business events, order placed, inventory updated, customer created, without needing to know about each other. This is the shape most fast-growing multi-location or e-commerce operations grow into, because it scales horizontally without every new consumer requiring a code change upstream.

Most mature enterprises end up running a hybrid: APIs for synchronous, customer-facing interactions and an event backbone for everything else, with a migration path that moves point-to-point integrations onto the event bus over time rather than all at once.

Microsoft’s Azure integration guidance maps this directly to concrete services, which is useful as a reference even outside the Microsoft ecosystem:

  • API Management for the gateway and developer portal layer
  • Logic Apps for low-code orchestration and workflow
  • Service Bus for reliable, ordered message queuing
  • Event Grid for high-volume, low-latency event routing
  • Functions for lightweight, event-triggered compute
  • Data Factory for bulk data movement and transformation pipelines

Azure’s reference architectures for integration are worth studying even if you run on a different cloud. They show how the abstract patterns above actually get wired together in production, though they should be read as implementation examples, not as a prescriptive blueprint for every organization.

How Do You Plan and Test an Integration Rollout?

Integration planning has to start at the requirements stage, not after development begins. Interface management and integration activities that get delayed until late in a project routinely cause costly retrofits, a pattern well documented in systems engineering literature on integration and project lifecycle.

A working integration plan needs five things:

  1. A full interface inventory — every system, endpoint, and data contract involved, documented before build starts.
  2. A sequencing plan — the order in which components get integrated and tested, since assembly order materially affects which defects surface first, as NASA’s product integration guidance notes.
  3. A test matrix — mapping which interfaces get tested together and in what combinations.
  4. Environment definitions — staging, simulators for systems not yet available, and production readiness criteria.
  5. Rollback and validation criteria — the specific conditions that trigger a rollback and who signs off on go-live.

On testing strategy, SEBoK’s systems integration guidance recommends a mixed approach rather than a single dogmatic method: incremental integration for lower-risk components, top-down or bottom-up depending on which subsystems are ready first, and consumer-driven contract testing wherever an external team owns the API you depend on. Wire integration test suites into CI/CD so a schema change fails the build before it reaches staging, not after a downstream consumer breaks in production.

What Are the Most Common Integration Anti-Patterns?

Most integration failures trace back to a short list of repeat offenders:

  • Synchronous coupling everywhere — chaining request/response calls across five systems means one slow dependency stalls the whole flow.
  • The monolithic ESB — routing every integration through a single central bus creates a bottleneck and a single point of failure.
  • Duplicated artifacts — the same schema redefined in three repositories because no registry existed to check first.
  • Undocumented interfaces — integrations built by one engineer, understood by nobody once they leave.
  • Schema and version drift — a producer changes a field and consumers find out in production.
  • No rollback strategy — a failed deployment with no defined path back to the last known good state.

The mitigations map directly to the design principles above: contract-first specs, a real artifact registry, throttling and backpressure on high-volume flows, and consumer-driven contract tests that fail loudly the moment a schema breaks compatibility.

What Should Be on Your Integration Architecture Checklist?

Before committing to any integration approach, run it against a short set of decision criteria:

  1. Business capability fit — does the integration serve a defined business outcome, or is it solving a one-off request?
  2. SLA requirements — does the data need to move in milliseconds, or is near-real-time acceptable?
  3. Data ownership — who is the system of record, and does every consumer agree?
  4. Governance readiness — is there an artifact registry entry before code gets written?
  5. Security posture — authentication, authorization, and data protection reviewed before go-live.
  6. Rollout and rollback plan — defined and tested, not improvised at deployment time.

Pro Tip: Default to event-driven when more than two systems need to react to the same change; default to API-led when one system needs a direct, immediate answer from another. Mixing the two by habit, rather than by decision, is how estates end up with neither pattern’s benefits.

Quicktoimpress’s Take: Why Embedded Delivery Beats Advisory-Only Integration Work

Most integration architecture advice comes from people who hand over a blueprint and leave. Some companies provide the blueprint and then leave. An embedded approach includes the blueprint, a live artifact registry, a prioritized integration backlog, and telemetry dashboards that client engineers continue to use after the engagement ends. Advisory-only models fail integration projects for a specific reason: the gap between architecture diagram and working code is where schema drift, undocumented interfaces, and rollback gaps actually happen. Staying hands-on through delivery is how those gaps get caught before production does.

How Quicktoimpress Helps You Build Integration Architecture That Holds

Every problem on the checklist above, unclear data ownership, no artifact registry, missing rollback plans, is a project management gap as much as a technical one. That gap can be closed by embedding senior engineers directly into the build, rather than just handing over a diagram and disappearing.

Quicktoimpress

Engagements often begin with a diagnostic review of the current integration environment, followed by an architecture blueprint and a prioritized delivery plan focused on integrations causing the most operational challenges. For teams connecting CRM, marketing automation, and reporting pipelines, that often runs through revenue operations work; for commerce platforms juggling inventory, payments, and fulfillment systems, it runs through growth platform engineering. Teams handling complex sequencing and staged testing sometimes bring in specialized project management support alongside the build. If your integration architecture needs a partner who stays through implementation instead of handing off a slide deck, get in touch with Quicktoimpress to scope a diagnostic.

Sources

FAQ

What Is an Integration Architect?

An integration architect designs how an organization’s applications, data, and services connect, choosing the components, patterns, and governance rules that make those connections reliable and reusable across projects.

What Are the Four Types of Architecture in Enterprise IT?

Enterprise architecture is commonly broken into business architecture, data architecture, application architecture, and technology architecture, with integration architecture cutting across all four to define how they connect.

What Are the Stages of API Integration?

A typical API integration moves through requirements and interface definition, contract design, development and connector build, testing (including consumer-driven contract testing), and staged rollout with monitoring and rollback criteria in place.

Should I Choose Event-Driven or API-Led Integration First?

Choose API-led when one system needs an immediate, direct answer from another; choose event-driven when multiple systems need to react independently to the same change, which is common in growing multi-location or commerce operations.

Why Does Integration Planning Need to Start So Early?

Delaying interface management and integration planning until late in a project routinely causes costly retrofits, since sequencing and environment decisions made upfront determine which defects surface first and how expensive they are to fix.
